The Delegation of the Ismaili Imamat in Ottawa (Delegation Building) is a formal and symbolic representational building for the Ismaili Imamat in Canada and for the non-denominational, philanthropic and development agencies of the Aga Khan Development Network.
An open and secular facility, the Delegation Building is a sanctuary for peaceful quiet diplomacy, informed by a commitment to global pluralism and to the development of civil societies.
The building powerfully symbolizes this important mission through its architectural “bridging of dichotomies” such as modernity + tradition, light + dark, indoor + outdoor, west + east.

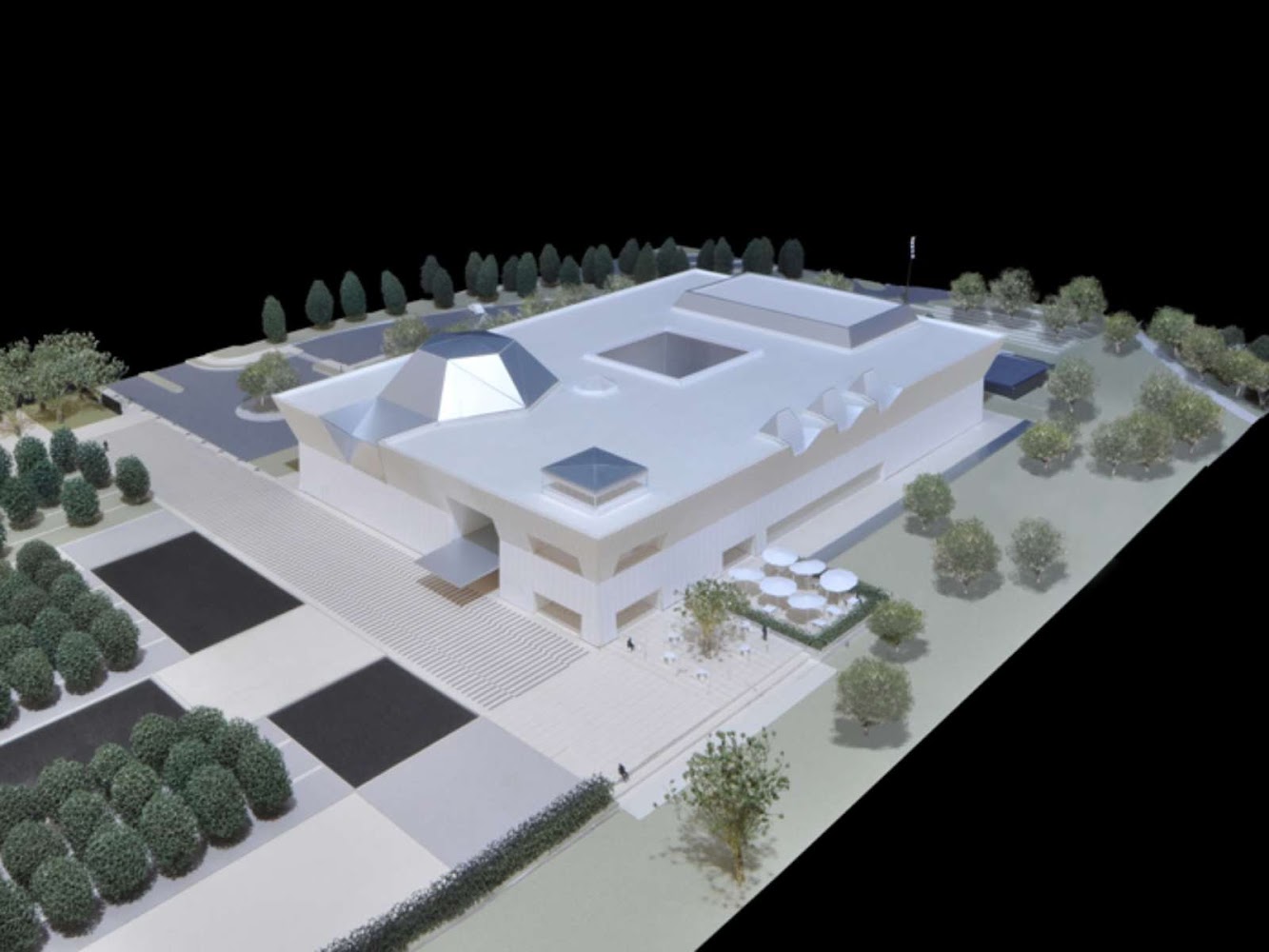

Contained within a simple rectilinear footprint (43.5 metres wide, 87 metres long, resting on a podium of black granite), the building plan is configured as a “ring” of program enclosing two central symbolic spaces--a crystal-inspired domed atrium and an open-air interior courtyard.

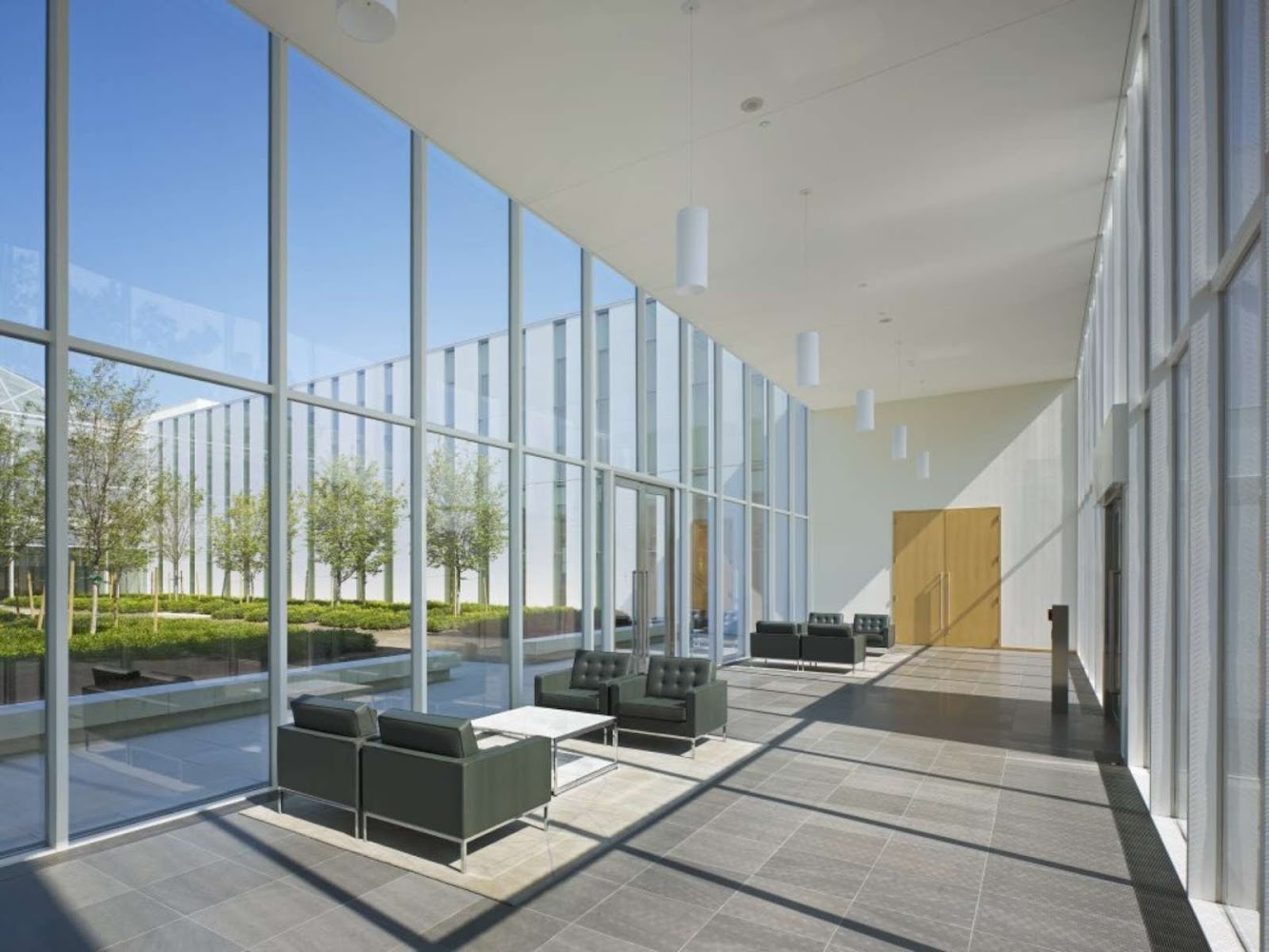

The atrium is located to the west and is accessible from the ceremonial entrance on Sussex Drive, while the modern four-season courtyard--adapted from the traditional Chahar Bagh, a Persian-Islamic walled garden--is located to the east.

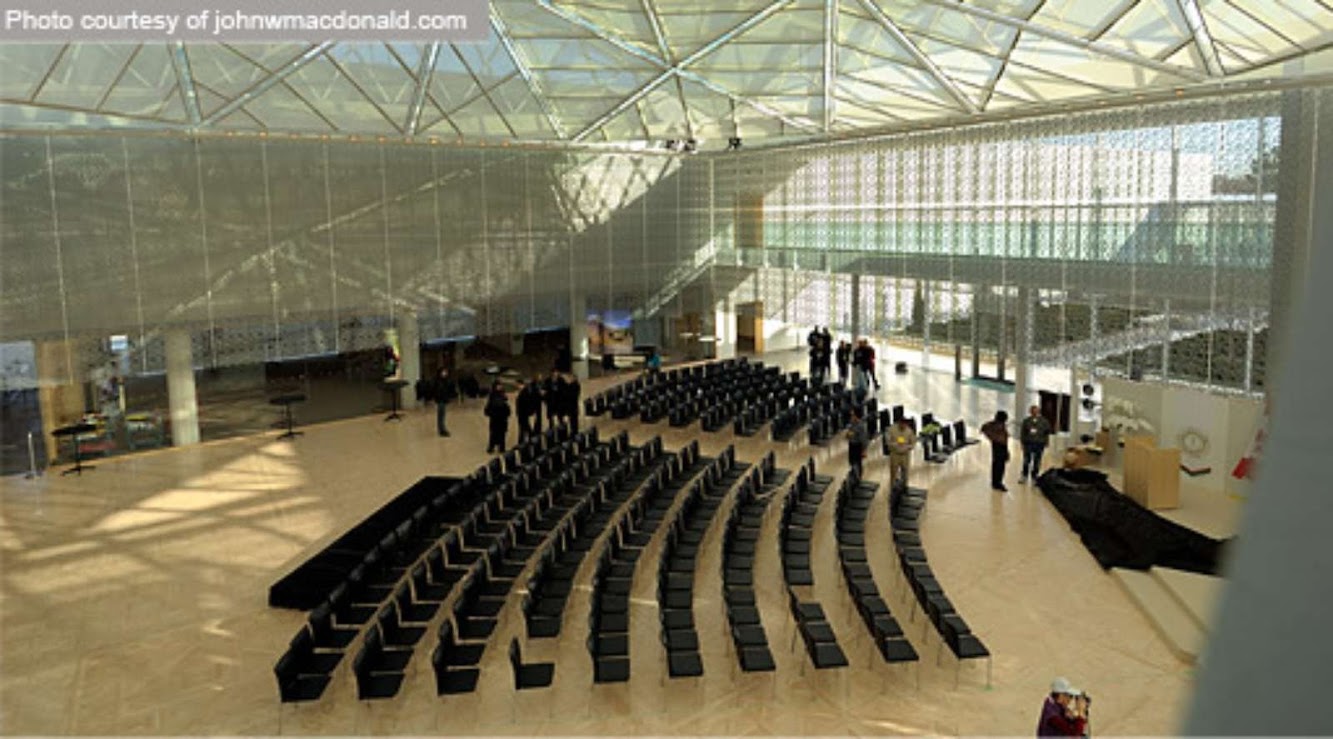

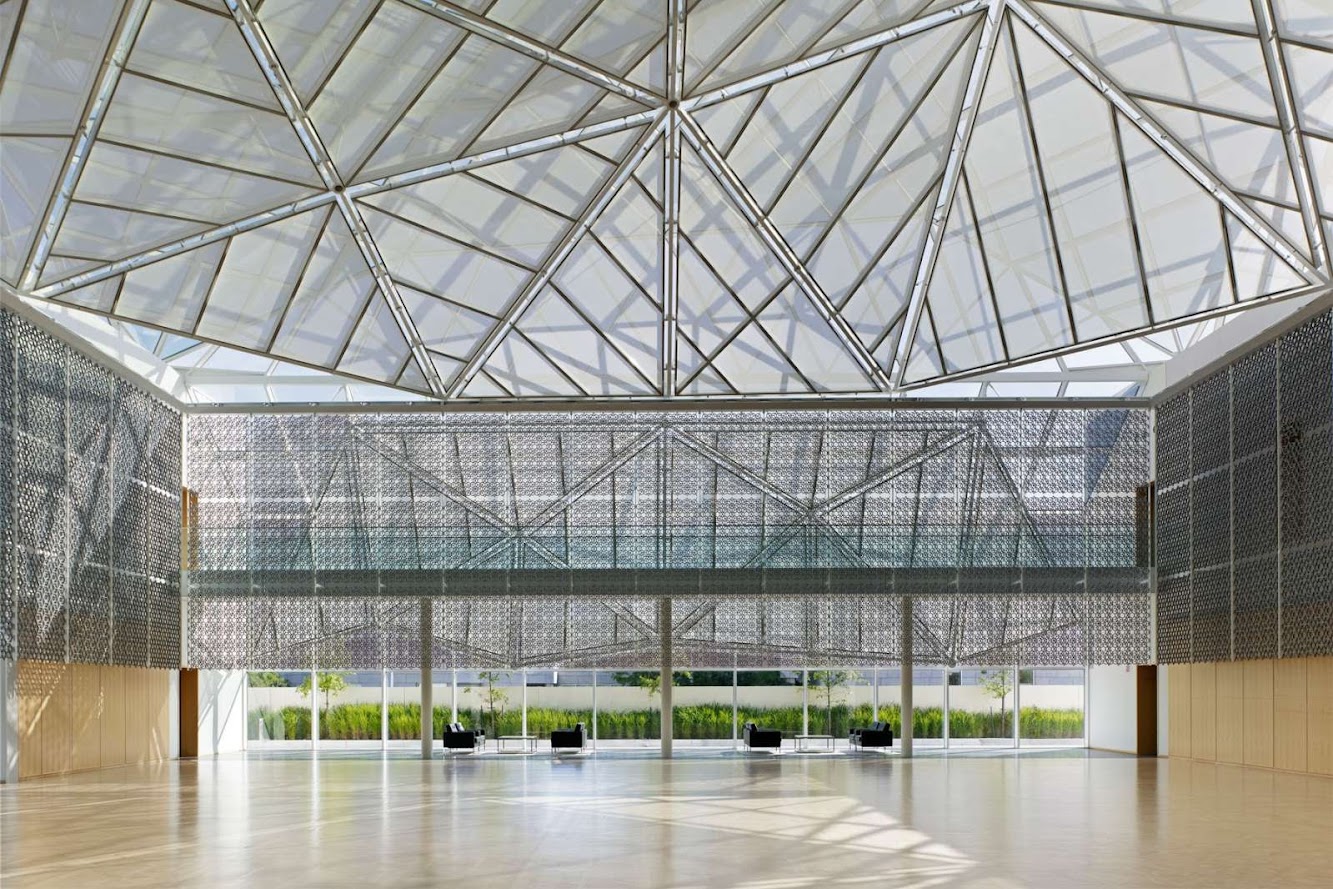

The atrium is inspired by natural stone crystals, traditional dome construction and Islamic geometries, and creates a highly distinctive and visible landmark. the unique geometry of the atrium animates the interior central hall and gathering space with an enchanting interplay of light and shadow. the quality of light within the hall is enhanced by virtue of a stunningjaliscreen composed of 180 custom-cast aluminum panels.
The panel pattern--a double layer of repeating hexagons--evokes the screens of carved marble and wood that filter light and views in traditional Islamic architecture. Floating between the glass dome structure and thejaliscreen is a shading layer composed of triangular frames covered with woven glass-fibre meshing that gently transforms the quality of light filtering through.
An intricately patterned floor of Canadian maple (49 geometric squares in reference to the 49th Imam) lends additional warmth and a domestic note of welcome. Symbolically, crystals represent spiritual peace and healing. the power-ful yet modest design of the atrium and its delicate patterns of light and shadow evoke in visitors a profound sense of spiritual peace and optimism.

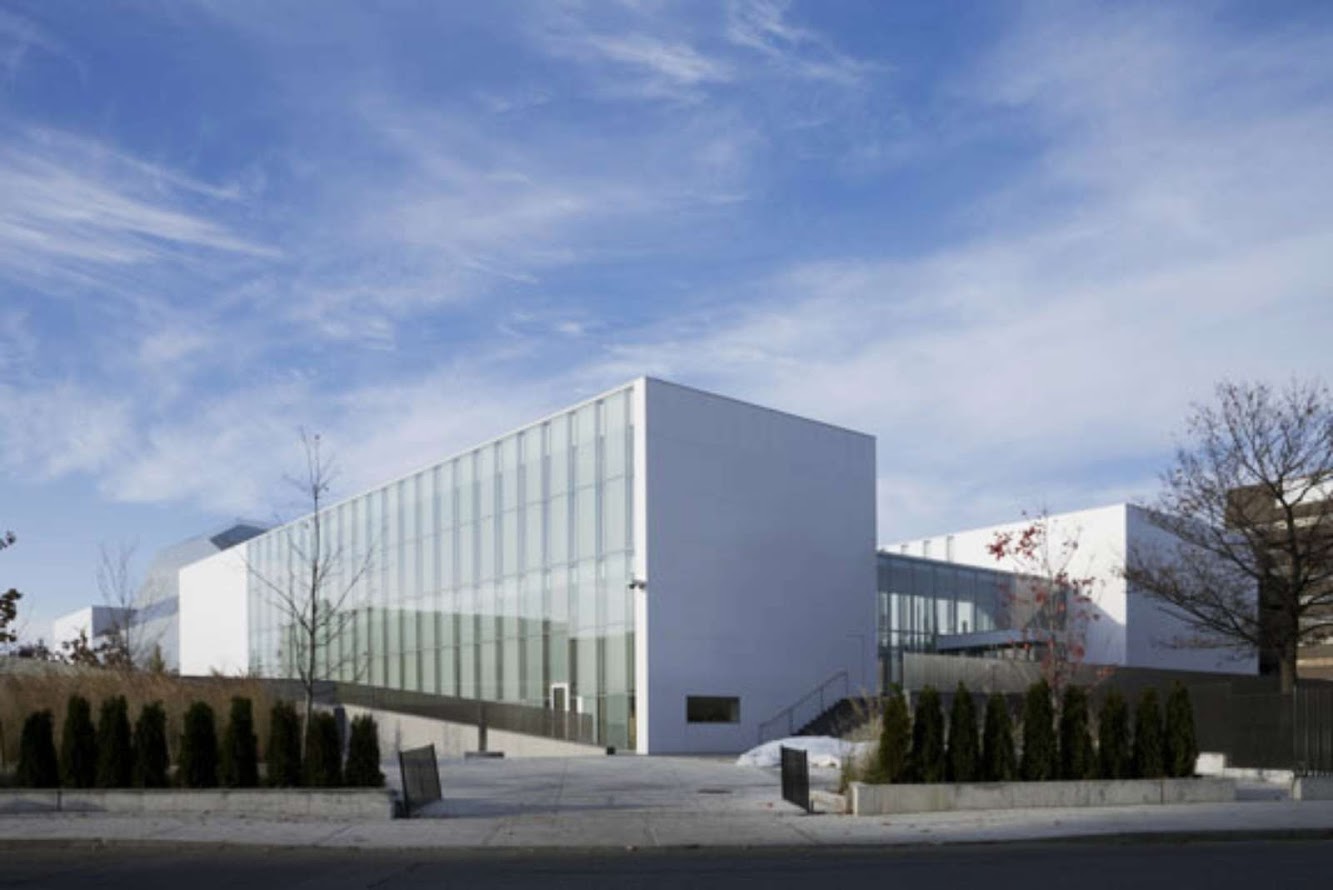

The primacy of light and the interplay of contrasting opacity and translucency is a strong theme of this work. Clad primarily in glass with varying degrees of transparency, translucency and opacity, the building achieves a dynamic visual effect. Crystallized glass panels (Neopariés)--a unique building material that gives the glass a soft opaque colour and a smooth marble-like finish almost porcelain in its quality and beauty--comprise the primary façades.
Like the natural beauty of a rock crystal that is a wonder to behold, it is hoped that the Delegation Building will be a source of optimism, fascination and enlightenment for all.
Location: Ottawa, Canada Architects: Maki and Associates Project Team: Fumihiko Maki, Gary Kamemoto, Kota Kawasaki, Tatsutomo Hasegawa, Isao Ikeda, Makoto Otake. Moriyama & Teshima Architects: Ted Teshima, Diarmuid Nash, Norman Jennings, Po Ma, Louis Lortie, Emmanuelle Van Rutten, Amanda Gilbert, Ronen Bauer, John Blakey, Shawn Geddes, Roy Gill, Joni Inouye, Ajon Moriyama, Farhad Rahbary, Hany Rizkalla, Susana Saiz, Elias Saoud, Chris Yen Planning Team: Moriyama & Teshima Planners (Drew Wensley, Tara Mccarthy, Eric Klaver) Structural: Halcrow Yolles Mechanical: the Mitchell Partnership Electrical: Mulvey & Banani Landscape: Moriyama & Teshima Planners Interiors: Maki and Associates in collaboration with Moriyama & Teshima ArchitectsContractor: Pcl Constructors Canada Inc. Lighting: Suzanne Powadiuk Design Inc. Acoustical: Aercoustics Engineering Ltd. Food Servic:e Design.Net Code: Leber Rubes Costing Curran Mccabe Ravindran Ross Inc. Architectural Specifications: Dgs Consulting Services Planning: Lloyd Phillips & Associates Ltd. Traffic And Civil: Delcan Corporation Microclimate, Wind And Snow: Rowan Williams Davis and Irwin Inc. (RWDI) Environmental And Geotechnical: Golder Associates Ltd. Audio/Visual: Engineering Harmonics Area: 8,916 m2 Budget: $54 M Client: Imara (Sussex Drive) Limited
