Gyeonggi, Corea del Sud: The Curving House by Joho Architecture
The Curving House by Joho Architecture

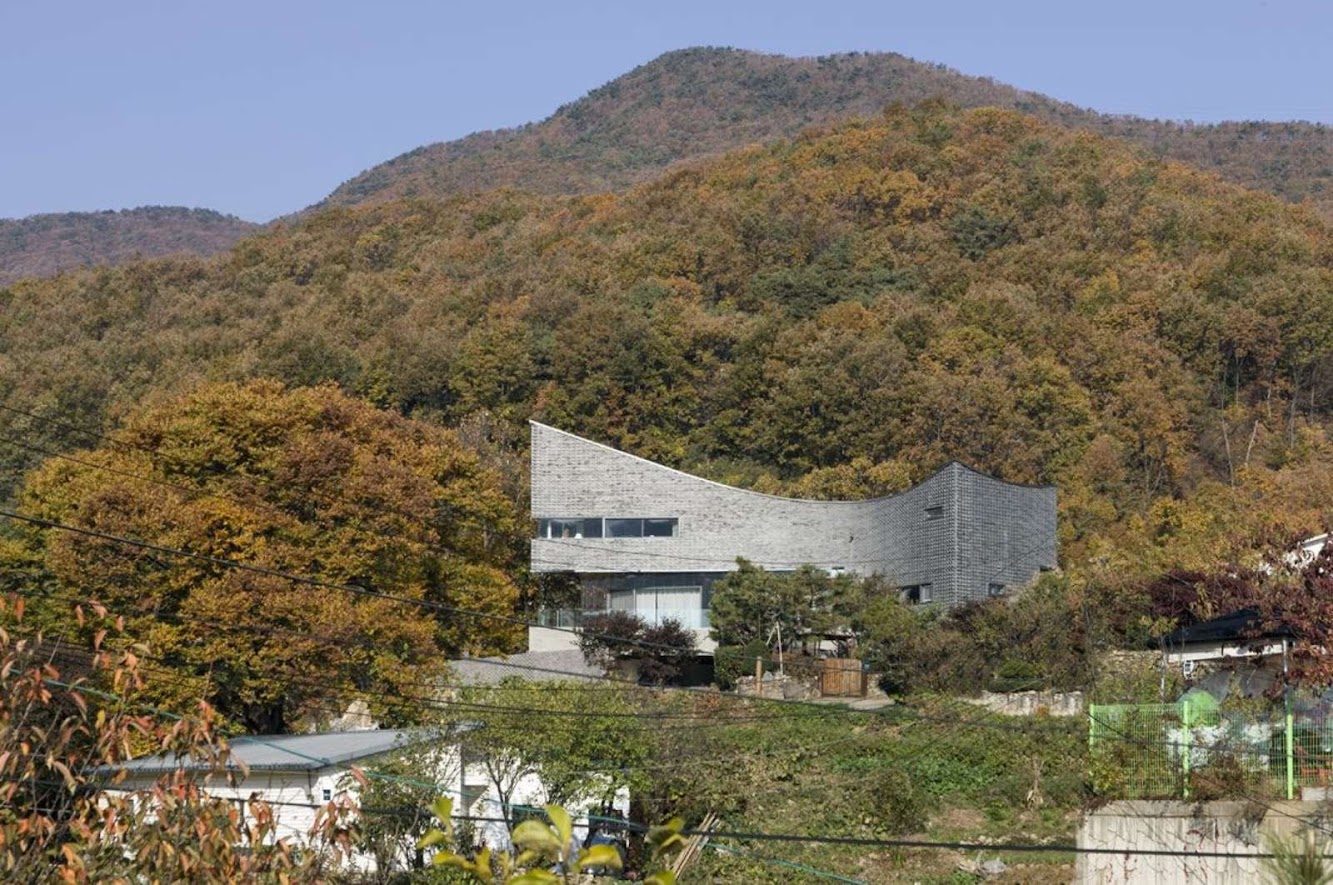

The mountains penetrate the sky and the sky contains the mountains as nature. Here, the mountains form lines and the lines remember the mountains in the land. the terrains of Mt. Gwanggyo flow low above the lot and the lot displays the entire view as if it responds to the graceful flow.

The Curving House by Joho Architecture

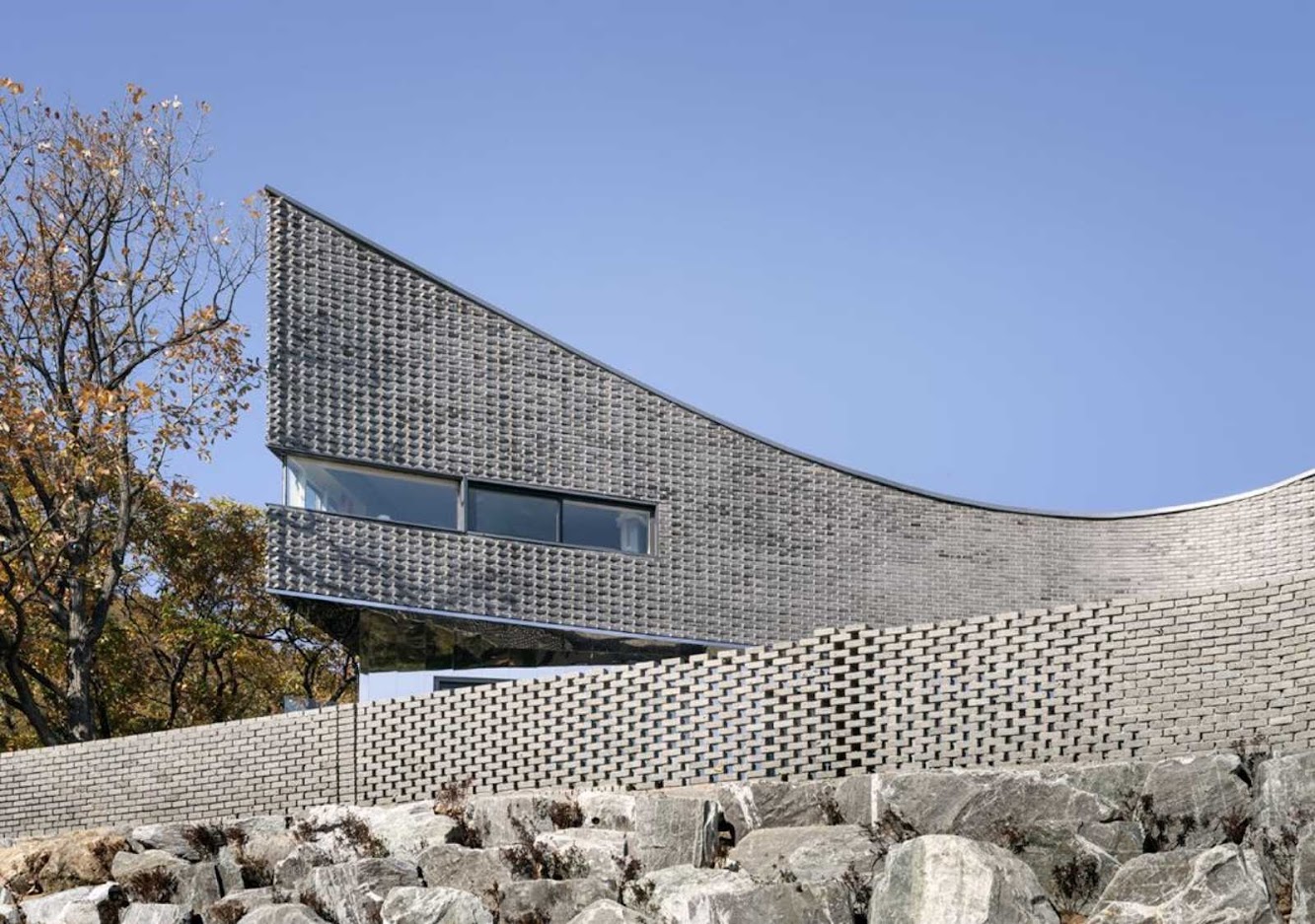

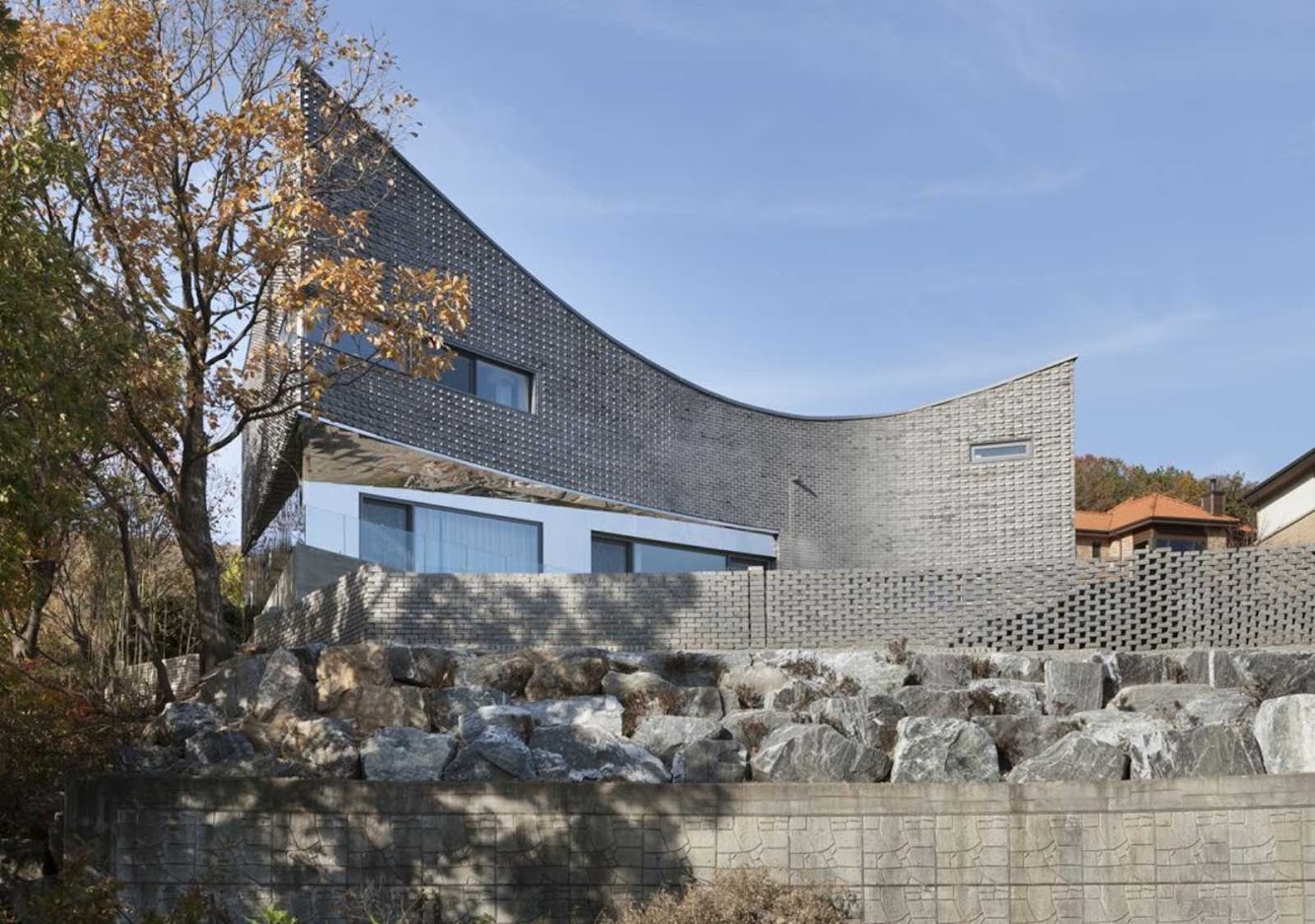

At this site, the land is the proof of space and everything about the substance. the shape created here contains the sky as an earthenware jar and displays the potentiality of land as a spatial substance. It draws a shape, but creates a space that shows the sky outside the shape to hide itself in nature. the ash-colored bricks (traditional bricks) embrace the concrete surface as fish scale while slightly altering the angles.

The Curving House by Joho Architecture

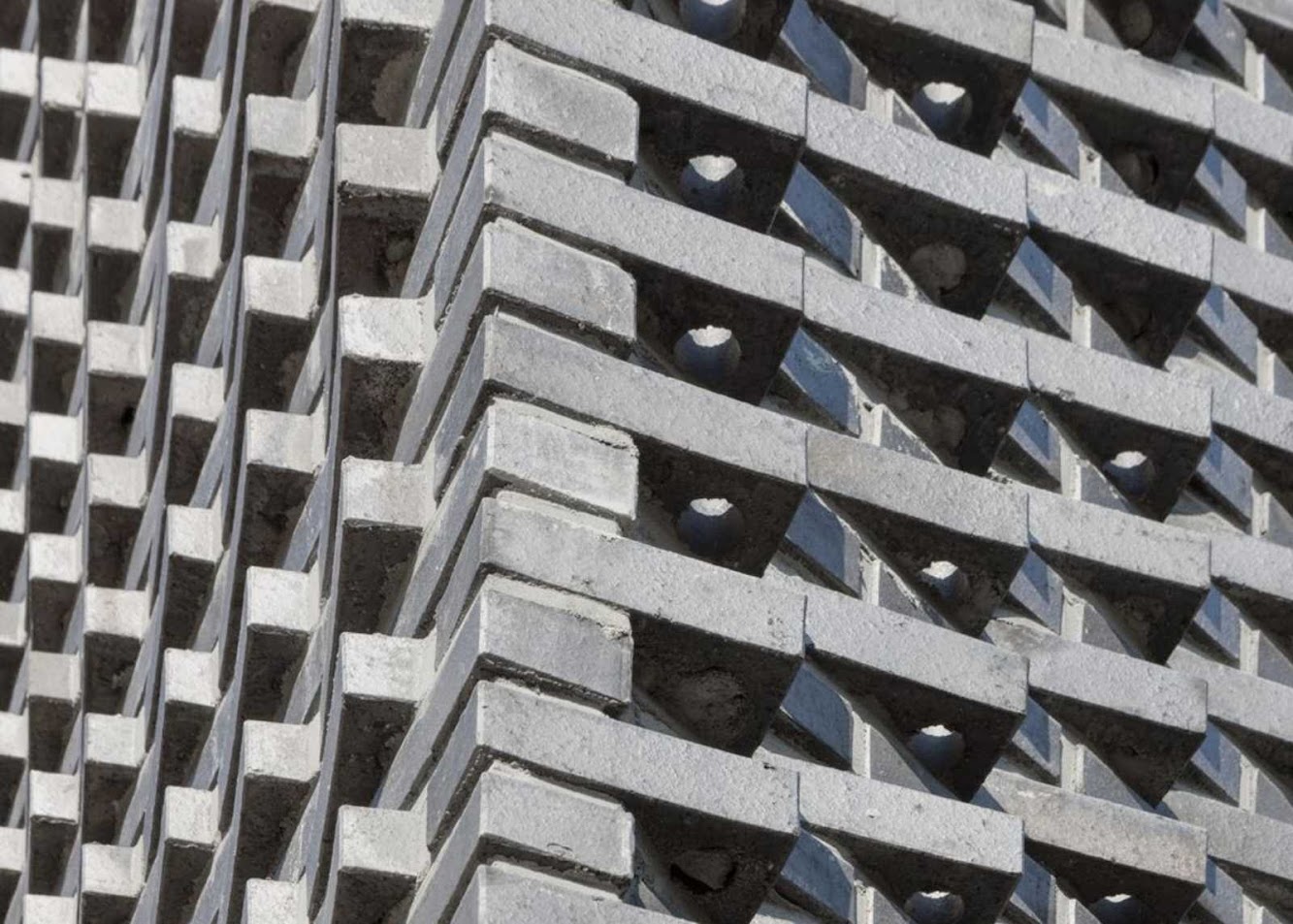

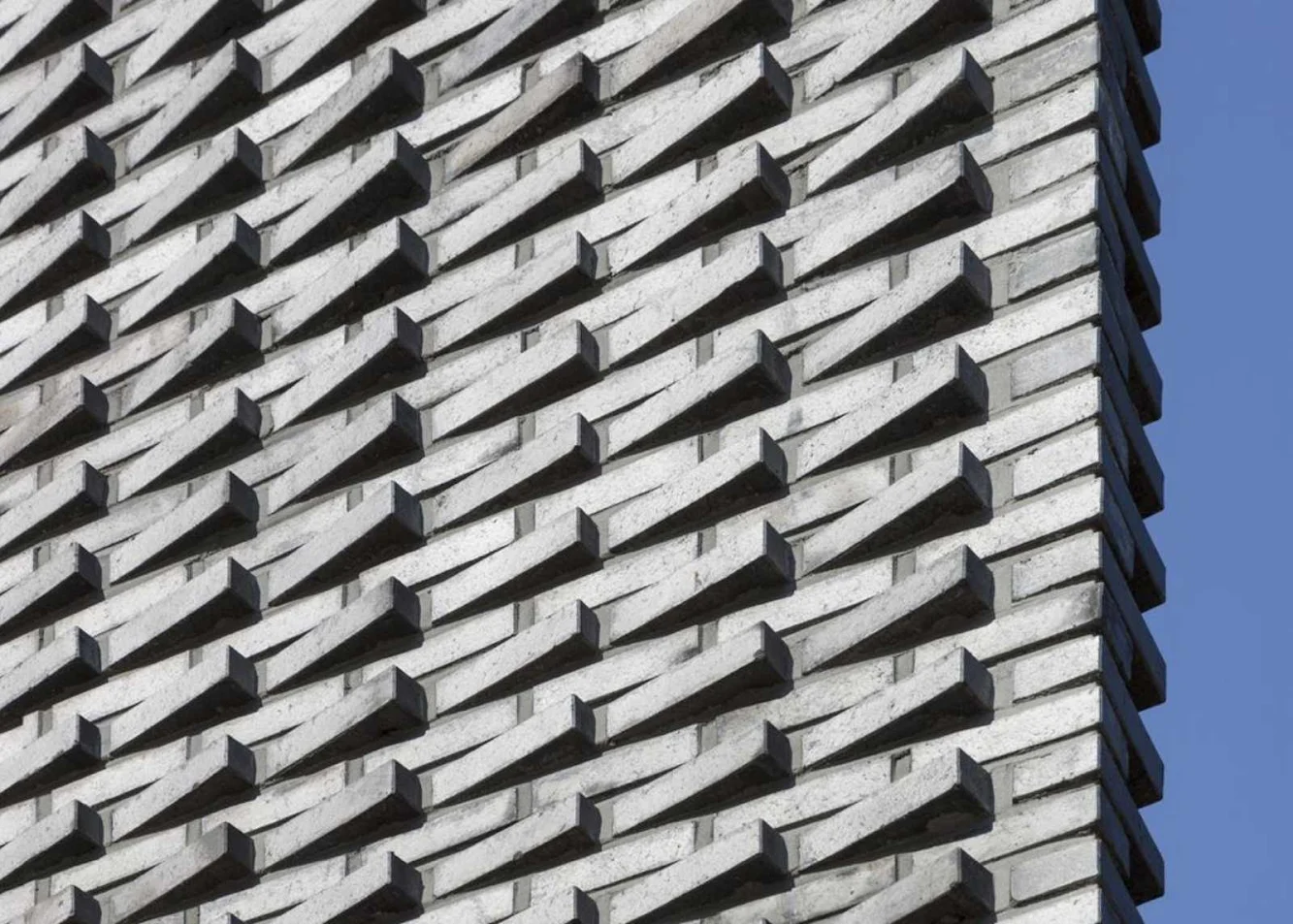

The traditional bricks used for this project have silver water-repellent coating on the surface and show sentimentality different from the rough surfaces of their tops and bottoms. the bricks with two different surfaces were piled to form a certain pattern from angles 1° through 25°. in other words, the variation of angle is another way how the outer skin in the shape of a concave lens facing south defines its existence.

The Curving House by Joho Architecture

The shadow of the brick wall caste as the Sun moves converts the flow of lines into the subtle change of the outer skin. the variation of the brick surface is intended to read the entire mass differently according to the perspective of incomer and the perspective of viewing the images from the mountains.

The Curving House by Joho Architecture

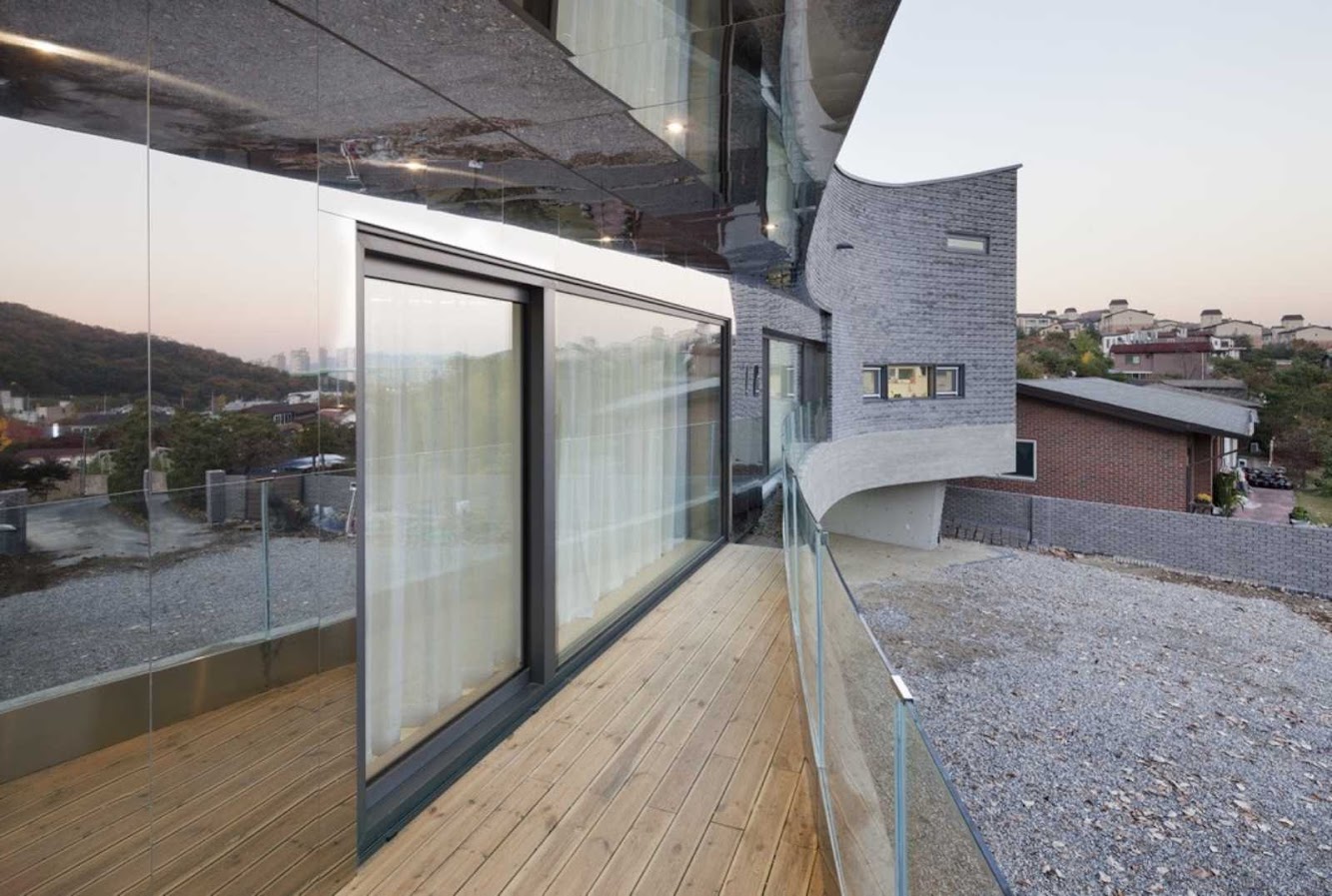

The rough texture of the traditional bricks interprets the lot in a different way in combination with the property of highly reflective stainless steel. the skies and nature reflected on the stainless steel surface distort what the true substance is to break the boundaries between shapes and texture. Unlike the rough texture of ceramic bricks, the stainless steel used on the front and on the side reflects the surrounding landscapes to make itself disappear.

The Curving House by Joho Architecture

If the bricks reveal themselves by the change of light and shadow, the stainless steel de-materializes itself by making itself disappear in nature. Such contrasting textures have different properties and confront each other in a single mass, but they ultimately establish balance through the extinction and reflection of light.

The Curving House by Joho Architecture

The pilotis for parking naturally serves as an opening for air ventilation. the summer breeze coming down from the mountain ridge circulates the air around the building thus reducing the heat load. Also, each room has windows for cross-ventilation and is planned to allow natural circulation of air. the motorized window on top of the living room can release heated air in summer for air circulation triggered by the difference in temperature known as stack effect.

The Curving House by Joho Architecture

The staircase to the north is planned to serve as a buffer of air against the freezing northwestern winds in winter to minimize heat loss. the front windows facing the south allow sufficient sunlight in winter to maximize energy efficiency with natural sunlight. in particular, the ceiling is also diversified to invite as much natural light as possible into the building to control illumination naturally.

The Curving House by Joho Architecture

The flow of space was borrowed from the method of handling the flow of air in traditional Korean homes. in detail, the pilotis on the bottom expands the surface of volume exposed to outer air to reduce the load of heat energy and allows natural ventilation in summer. This is similar to the principle of open living rooms in Korean traditional spaces. It means that the entire building allows ventilation to keep the building cool.

The Curving House by Joho Architecture

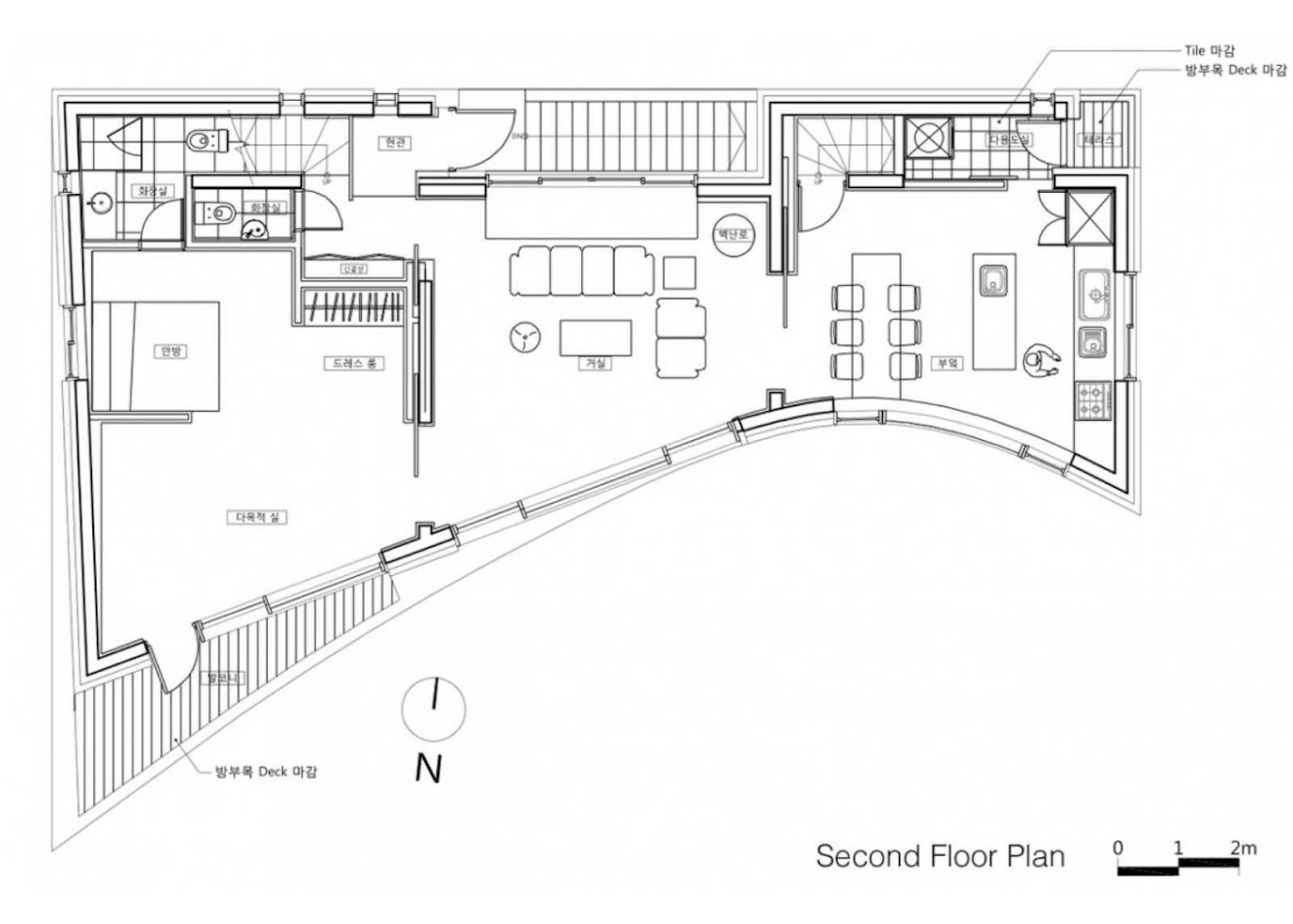

In winter, on the other hand, the concrete floor is made as thick as possible as a thermal mass, similar to Ondol floors of Korean traditional architecture for maximum insulation, to block the cold air from the underground. Also, the interior space of the second floor has an open living room, bedroom, and kitchen which can be divided and combined flexibly with sliding doors for different needs. This is a modern reinterpretation of the variable space of Korean traditional homes that can be used either as a big room or as smaller individual rooms.

The Curving House by Joho Architecture
The Curving House by Joho Architecture
The Curving House by Joho Architecture
The Curving House by Joho Architecture
The Curving House by Joho Architecture
The Curving House by Joho Architecture
The Curving House by Joho Architecture
The Curving House by Joho Architecture
The Curving House by Joho Architecture

Location: Gyeonggi-do, Korea Architect: Joho Architecture Architect in Charge: Jeonghoon Lee Design Team: Il-Sang Yoon, Gae-hee Cho Construction: Dong-jin Chea Site area: 529.00 sqm Area: 140.57 sqm Year: 2012 Client: Im-jeong Choi Photograph: Sun Namgoong
